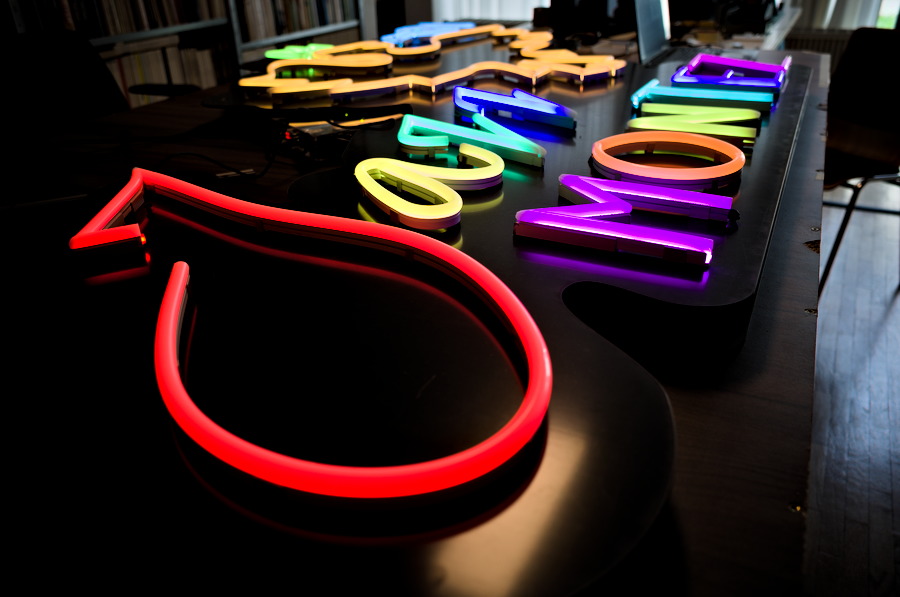

Result
Work in Progress
Finally the Jazz Montez Logo is created. Check out this timelapse to see how a detailed logo can be tailored with LED neon tubes.
Copying a font onto acrylic glass is a lot of work. A timelapse shows how this is done with stencils.
Find out how the LED strip Controller Box was built in a timelapse.
Materials for a Neon Sign
Electronics
- FCOB (flip chip-on-board) flexible high density analog RGB LED strips with about 576 LEDs/Meter
- Waterproof silicon NEON light tubes for LED strips for a dot-less visual appearance
- DMX Interface for professional stage lighting control over all seperately addressable letters and symbols of the Jazz Montez Logo
- ESP32 Microcontroller with custom firmware (Arduino / C++ programmed)
Mounting Materials
- Two glossy black acrylic glas boards for dignified reflections on the background surface with the electronics sandwiched in between.
